Overview

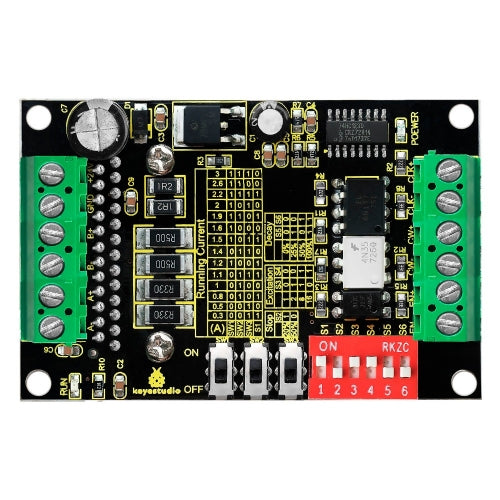

This keyestudio board mainly uses the TB6560 stepper motor driver, which is an economical stepper motor driver with high stability, reliability and immunity. It can be applied to various industrial control environments. This driver is mainly used to drive Type 35, 39, 42, 57 with 4, 6 and 8-wire two-phase hybrid stepper motors. It has 4 kinds of subdivisions and the maximum is up to 16-subdivision. The driving current is within 0.3A-3A, and output current has a total of 14 modes, and current.
Specifications
- SKU: KS0318
- Supply Voltage: DC 8-35V, DC 24V recommended
- Driving Current: 0.3-3A
- Current Resolution: 0.2A
- Driver Support: Type 35、39、42、57 with 4、6、8-wire two-phase hybrid stepper motors
- Max Exciation: 16-subdivision
- Dimensions: 75mm * 50mm * 35mm
Tutorials
Wiring and sample code are in the Keyestudio Wiki.
