Overview

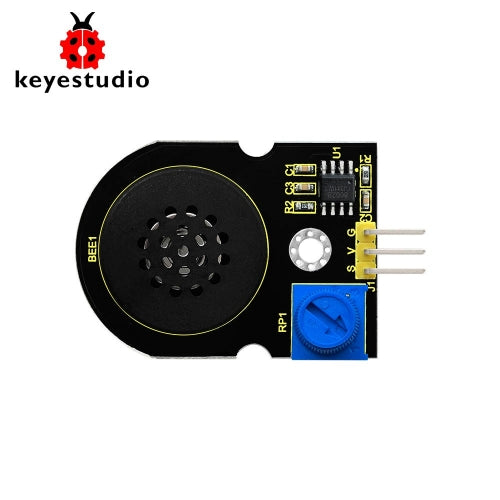

The keyestudio power amplifier module integrates an adjustable potentiometer, a speaker, an audio amplifier 8002B chip and a 3pin header interface. It can amplify the small audio signal output, about 8.5 times magnification, and can play it out via a small power speaker. Pay close attention that should adjust the sound volume to a minimum before use, then slowly increase the speaker volume, preventing from burning the speaker. When testing, after connected to microcontroller, input square waves.
Specifications
- SKU: KS0374
- Amplifier chip: SC8002B
- Operating voltage: DC 5V
- Operating current: ≥500MA
- Maximum power: 2W
- Operating temperature: 0-40°
- Speaker power: 0.15W
- Speaker sound volume: 80db
- Property: ROHS
- Dimensions: 47mm * 30mm * 13mm
- Weight: 8.4g
- Note: 4. Connect It Up
- Note: Connect the power amplifier module to control board using three jumper wires. Then connect the control board to your PC with a USB cable.
- Note: 5. Upload the Code
- Download code : Code
