Overview

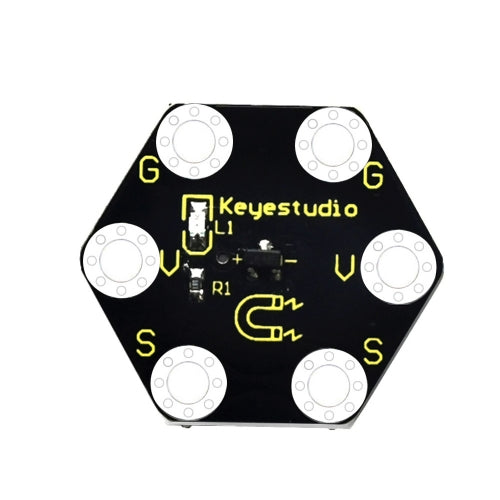

The Keyestudio micro bit honeycomb hall magnetic sensor is fully compatible with micro bit control board. In the experiment, we connect it with the micro: bit by a crocodile clip.
Specifications
- SKU: KS0492
- Working voltage: DC 3.0-5V
- Working current: 60mA
- Maximum power: 300mW
- Working temperature: -25 ℃ –65 ℃
- Dimension: 30mm * 27mm * 5mm
- Weight: 2.0g
- Environmental attributes: ROHS
- 3. Connection Diagram : 4. Test Code
- Download code: Code
