Overview

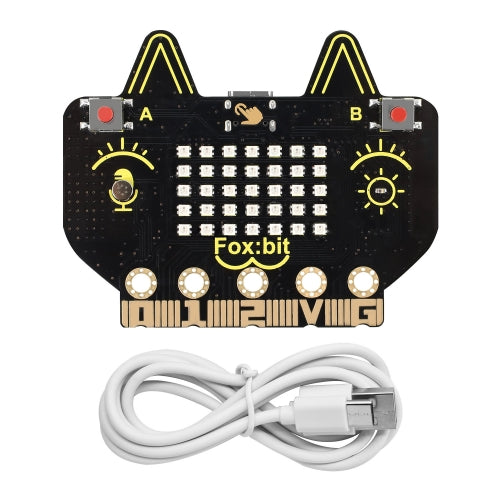

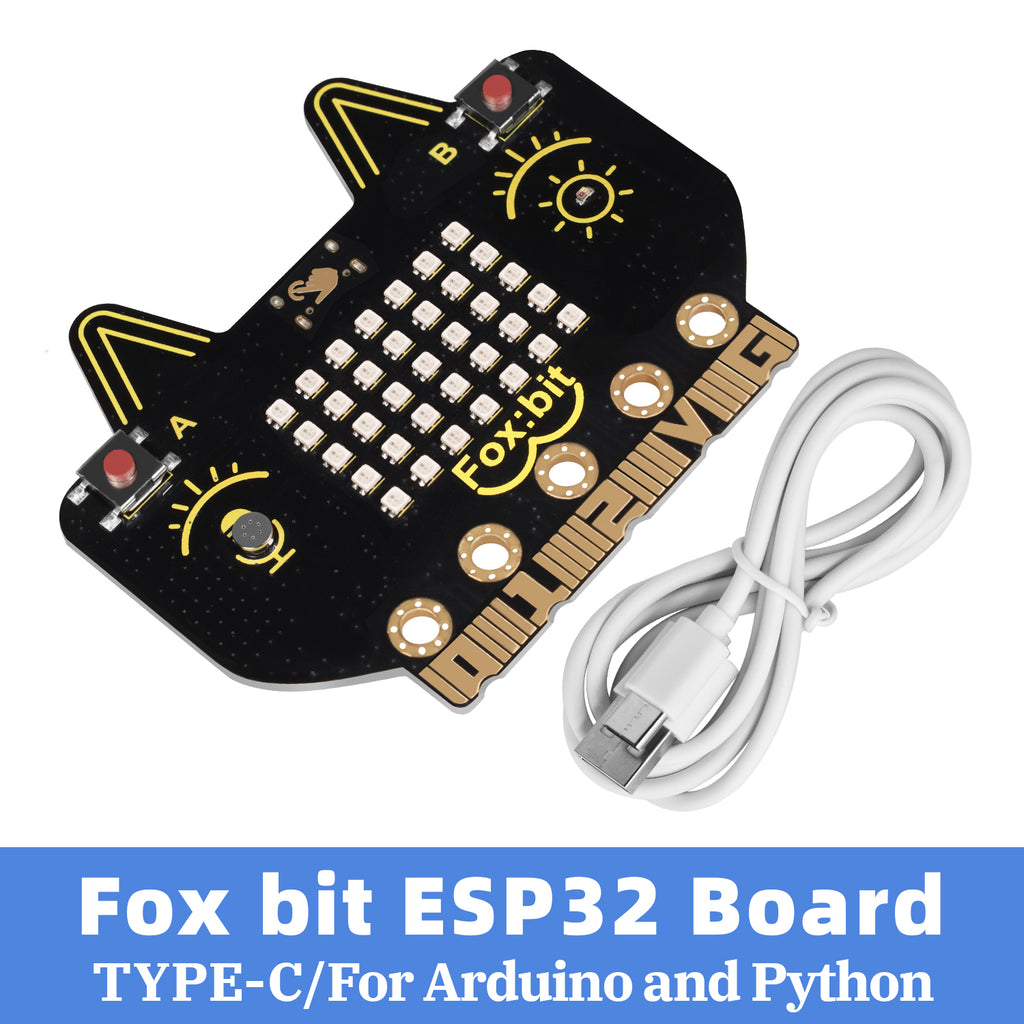

The Foxbit is an ESP32 board for STEM classes and maker projects. It has Wi-Fi and Bluetooth on the chip, plus sensors and a 5x7 RGB matrix on the board, so a first project does not need extra modules. The connector is USB-C.

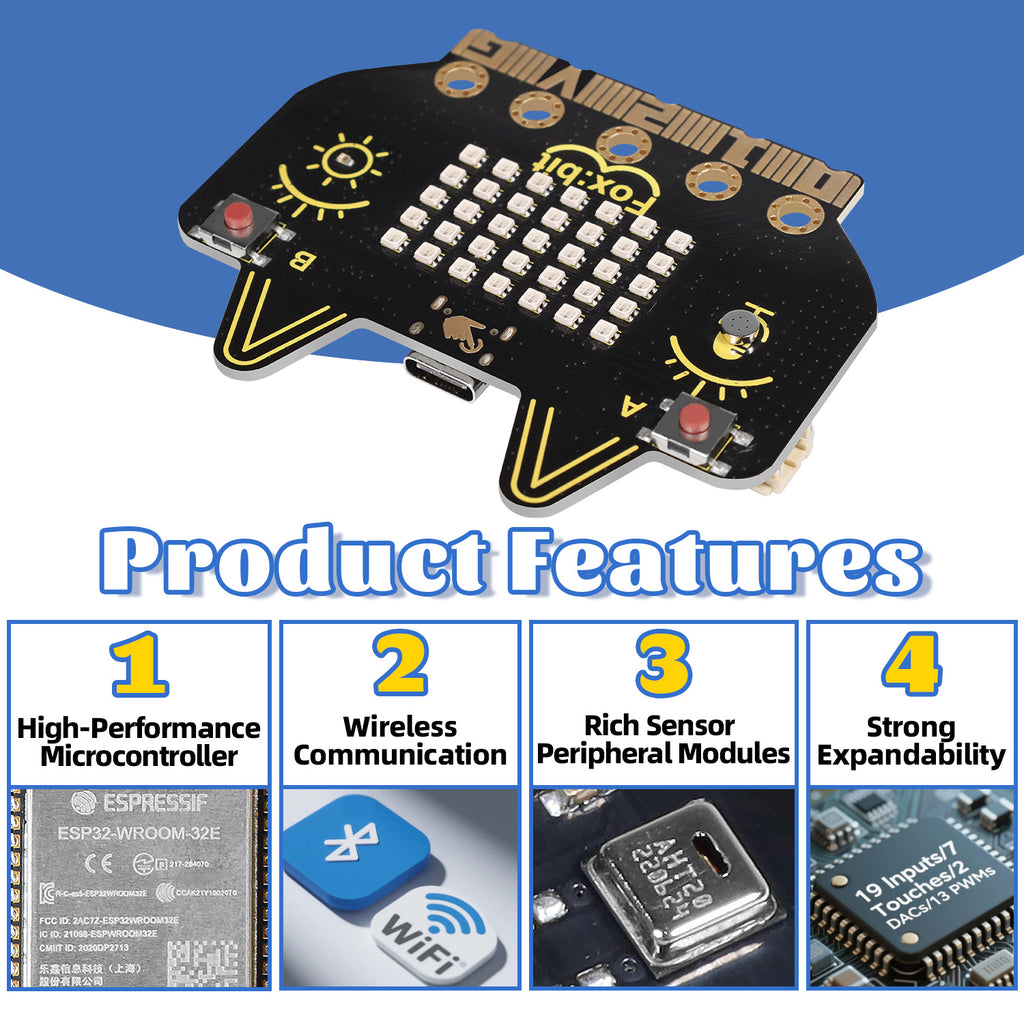

Features
- ESP32-D0WDQ6 dual-core, up to 240 MHz
- Wi-Fi 802.11 b/g/n and Bluetooth 4.2, including BLE

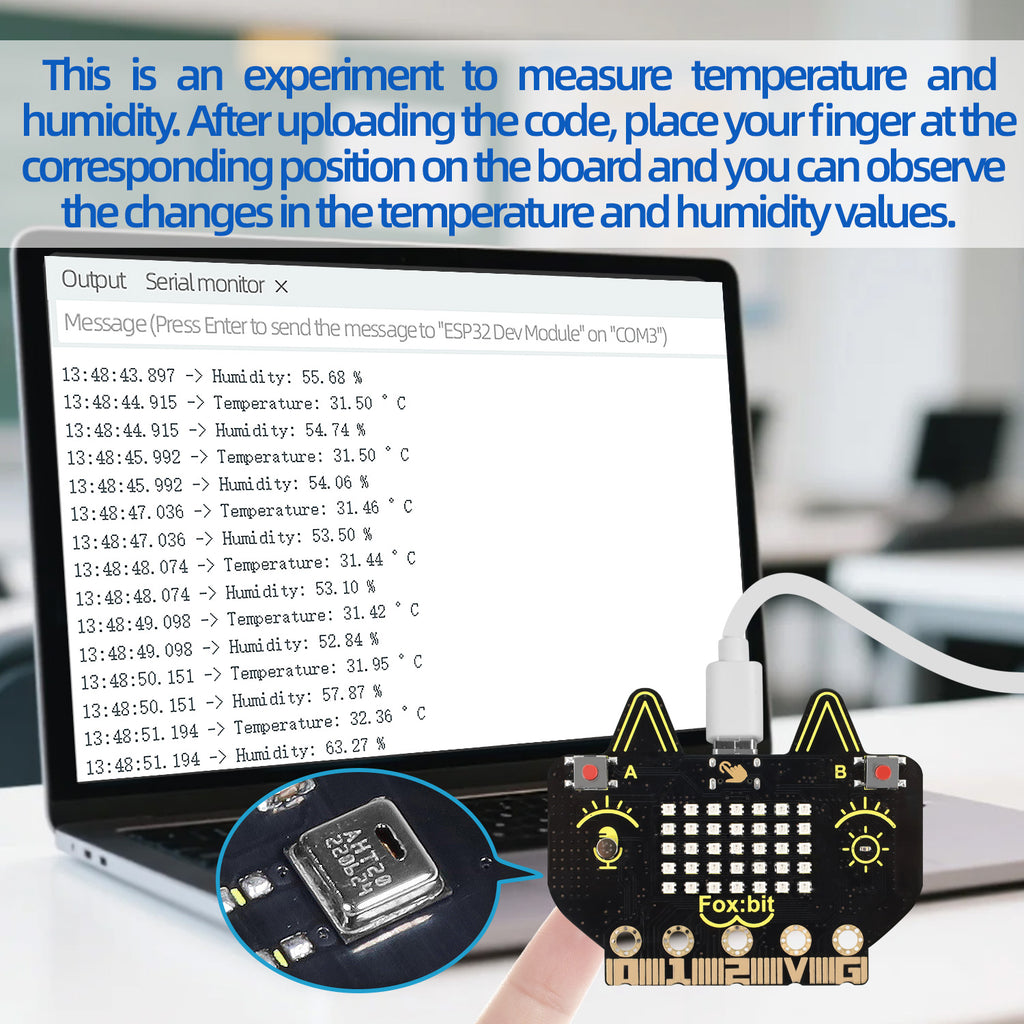

- On-board AHT20 temperature and humidity, QMI8658C six-axis motion sensor, light sensor, microphone, and buzzer
- 5x7 RGB matrix, 35 WS2812 LEDs
- 19 digital I/O, 7 touch pins, 2 DAC outputs, 13 PWM outputs
- Power from USB-C, a PH2.0 DC plug, or the gold-finger edge

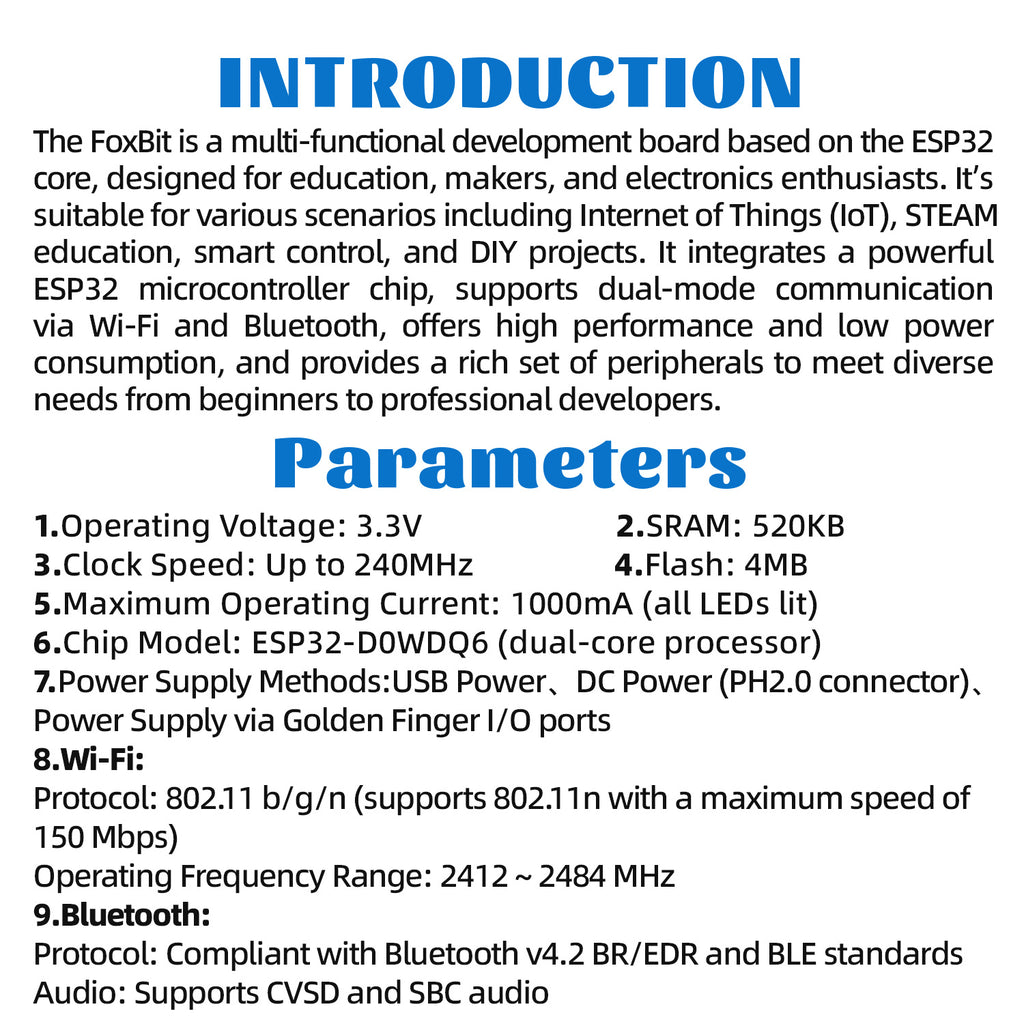

Specifications
- SKU: FB0001
- Chip: ESP32-D0WDQ6
- Clock: up to 240 MHz
- SRAM: 520 KB
- Flash: 4 MB
- Logic voltage: 3.3 V
- Maximum current: 1000 mA with every LED on
- Wi-Fi: 802.11 b/g/n, 2412-2484 MHz, up to 150 Mbps
- Bluetooth: v4.2 BR/EDR and BLE
Pin functions
- Button A: GPIO0. Button B: GPIO4. Touch: GPIO27
- QMI8658C and AHT20 share I2C: SDA GPIO21, SCL GPIO22
- Light sensor: GPIO39. Microphone: GPIO35. Buzzer: GPIO33
- RGB matrix data: GPIO13
- SD card SPI: CS GPIO5, MOSI GPIO23, MISO GPIO19, SCK GPIO18
- Current sense: GPIO36
Tutorials
Pin map, power, and sample projects are in the Keyestudio Wiki.
